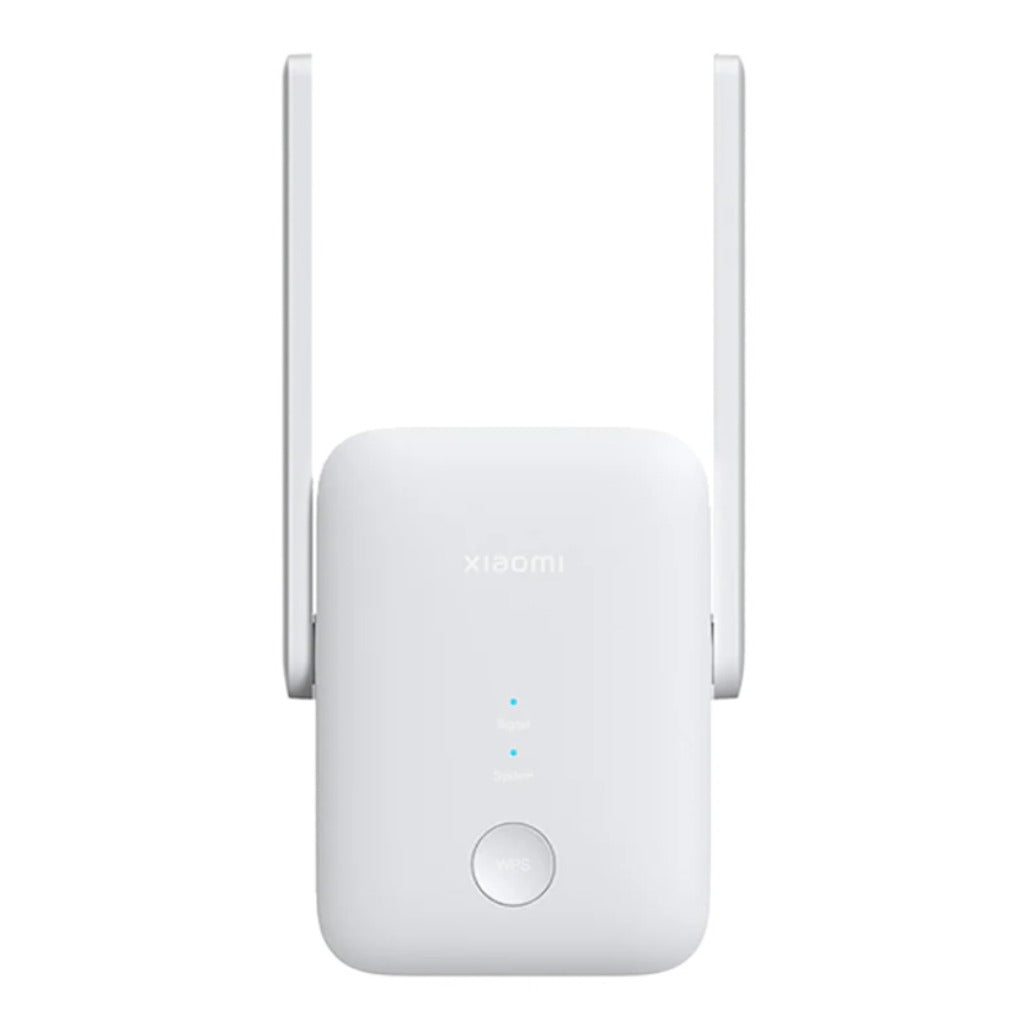

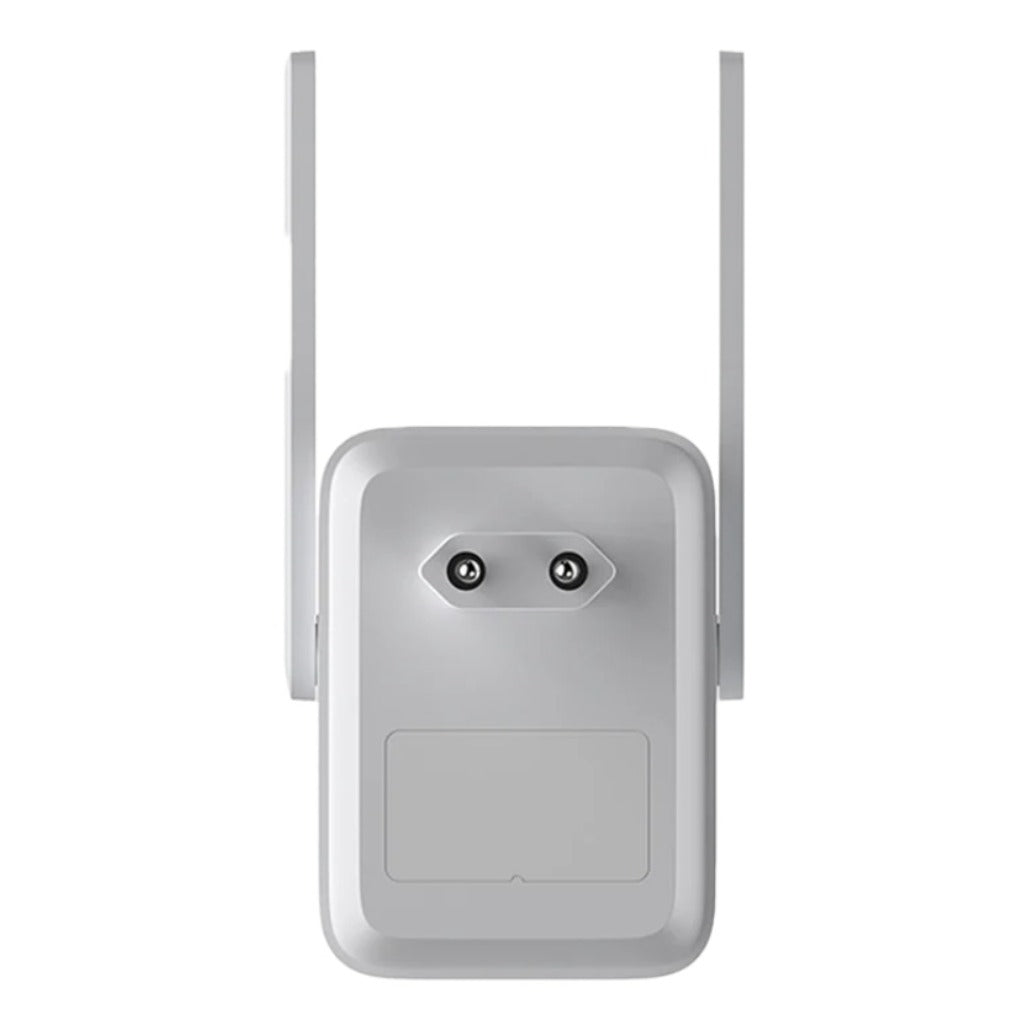

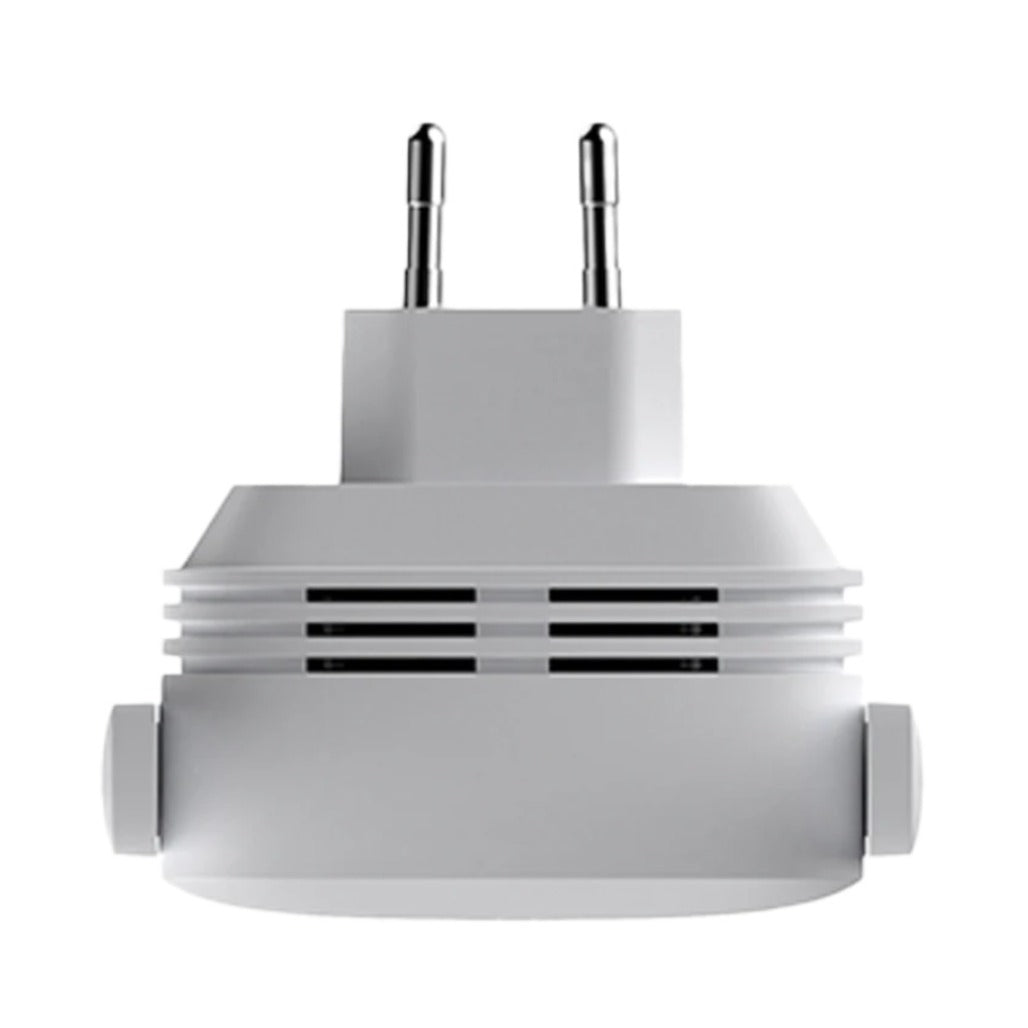

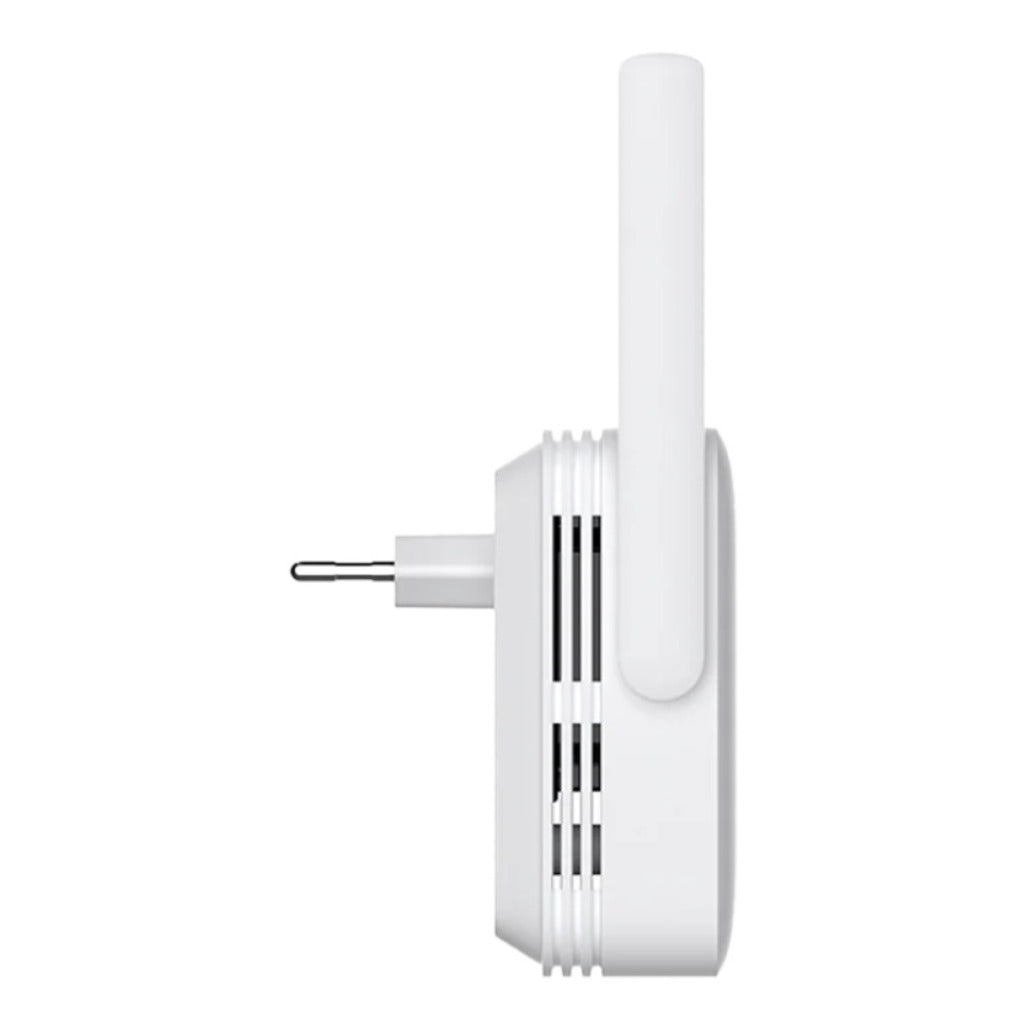

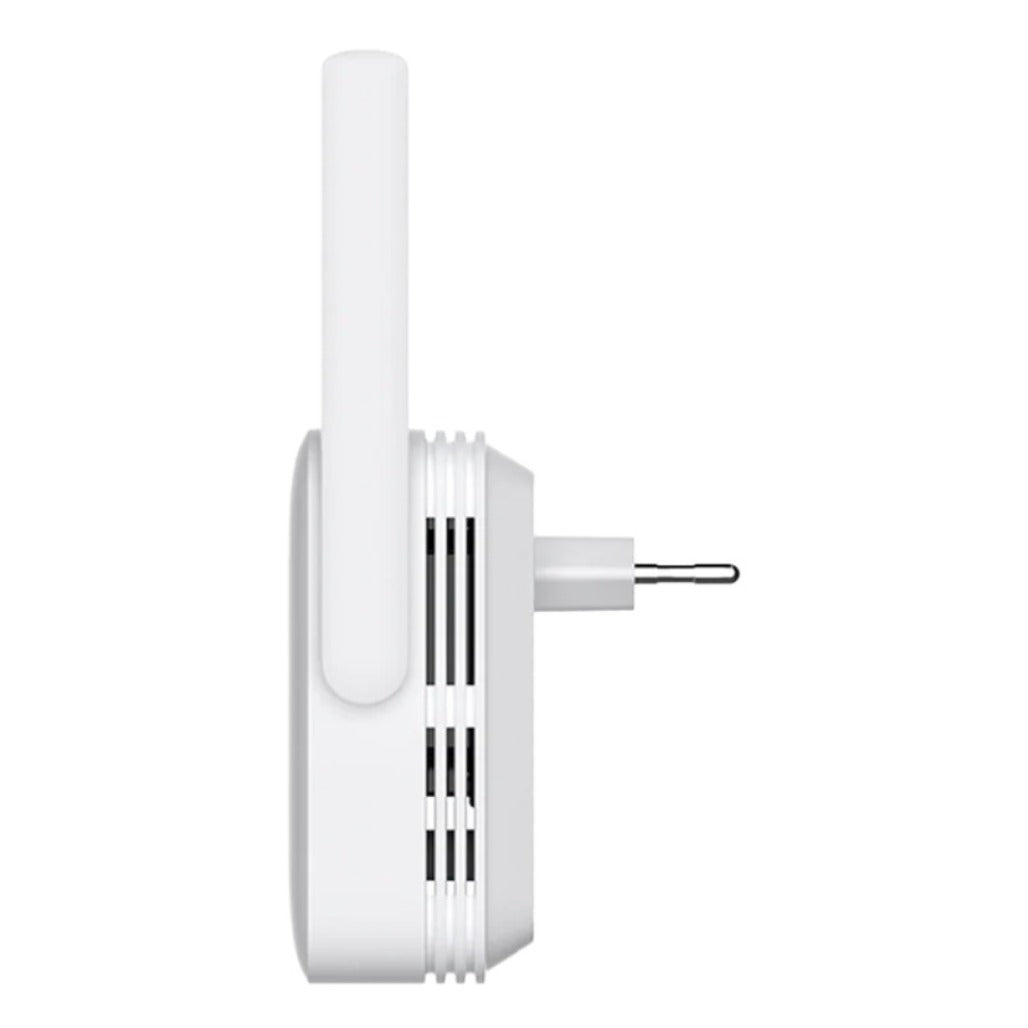

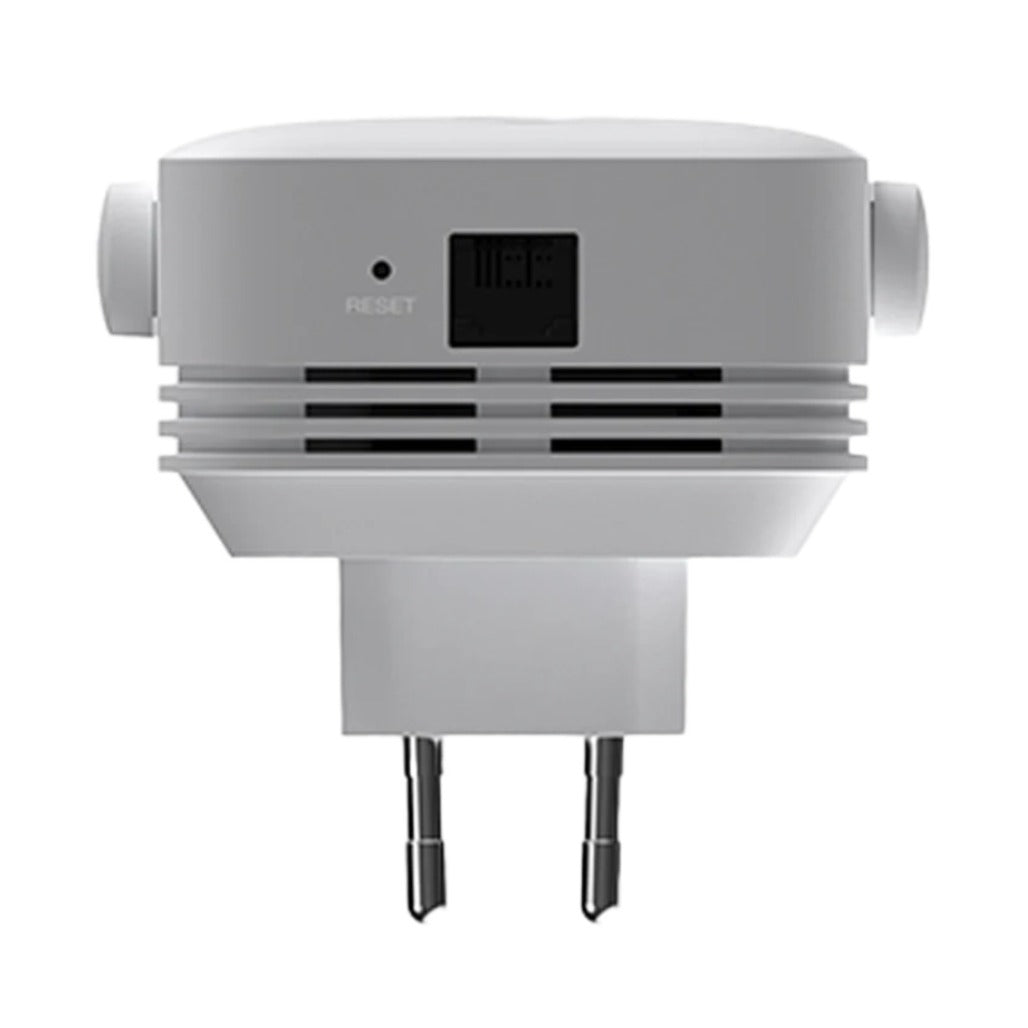

Xiaomi Wi-Fi Range Extender AX1500 - AX1500

Upgrade your home network with the Xiaomi Wi-Fi Range Extender AX1500, designed to extend Wi‑Fi coverage into signal dead zones for more reliable connectivity. It supports EasyMesh and Easy networking for large homes, helping your devices roam seamlessly. With a Gigabit Ethernet port, it also supports wired connections for TVs, game consoles, and other LAN devices. This Wi‑Fi range extender is built for dual-band performance with dual concurrent 2.4 GHz and 5 GHz operation. It supports Wi‑Fi 6 with high-speed broadband transmission and offers smart signal indication to help you find a better placement. Choose a working mode such as Range Extender mode, Mesh mode, or Access Point (AP) mode, then set up networking with one-tap simplicity through the Xiaomi Home app.
Key Features
• EasyMesh-compatible
• Full signal coverage for large homes
• Supports high-speed broadband transmission
• Gigabit Ethernet port delivers faster wired speeds
• Connect wired devices such as TVs and game consoles to your network
• Smart signal indicator
• EasyMesh / Easy networking for large homes
• Seamless roaming with virtually no dead zones
• One-tap networking
• Flexible extension
• Beamforming technology provides directional signal transmission
• Dual-polarised omnidirectional antenna for wider signal coverage
• Dual-band SmartLink for uninterrupted network access
• Dual concurrent bands: 2.4 GHz/5 GHz
• AP mode for easier network access
• Extender is too far from the router to receive its signal (scenario described for AP mode)
• One-tap simple network setup
• Rigorously tested to ensure premium Xiaomi quality
• Next-generation security and encryption protocols protect your home network, supported by six rigorous tests to ensure safe and reliable use
• Stable, lag-free connections even when multiple devices are connected
• Supports multiple simultaneous device connections (actual number depends on usage conditions)
• Equipped with an upgraded CPU and high-capacity DDR memory
• Supports Xiaomi Mesh and EasyMesh
• Compatible with most major router brands
• Devices automatically switch to the strongest Mesh node as you move room to room
• Intelligent switching between Wi-Fi bands (requires 802.11k/v support on smartphones/tablets or other devices)
• Beamforming technology locks onto the location of your devices and enhances Wi‑Fi signals directionally toward smartphones and laptops
• In AP mode, the extender connects to the router via an Ethernet cable to create a Wi‑Fi network
• The extender converts a wired connection into wireless using an Ethernet cable
• Compatible with any Wi‑Fi router
• Setup and management via the Xiaomi Home app (Android, iOS)
Specifications
• Product Colour: White
• Dimensions: 84 × 82 × 168mm
• Protocol Standard: IEEE 802.11 a/b/g/n/ac/ax, IEEE 802.3/3u/3ab
• Dual-band: 2.4GHz, 5GHz
• Working Mode: Range Extender mode, Mesh mode, Access Point (AP) mode
• Wireless Specifications:
• 2.4GHz Wi-Fi
• 5GHz Wi-Fi
• Wireless speed figures listed: 1501Mbps high-speed transmission; 1201Mbps; 867Mbps
• Increased maximum theoretical speed at 5GHz: 38.5%
• Hardware Configuration: 2×2 (supports up to IEEE 802.11n protocol with a theoretical max rate of 300Mbps)
• Hardware Configuration: 2×2 (supports up to IEEE 802.11ax protocol with a theoretical maximum rate of 1201Mbps)
• Antenna: 2 high-gain antennas
• Heat Dissipation: Natural heat dissipation
• Network Port: 1 × 10/100/1000Mbps LAN port
• LED Indicator: System indicator, Signal indicator
• System Reset Button: x1
• WPS/Mesh Networking Button
• Modulation:
• 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
• 11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
• 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM Data rate: MCS0-MCS15
• 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
• 11ax: MIMO-OFDMA: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
• Wi‑Fi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE, SSID hidden
• Management Applications: Xiaomi Home app (Android, iOS)
• Working Environment Temperature: 0 to 40°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Storage Temperature: -40°C to 70°C
• Storage Humidity: 5% to 90% RH (non-condensing)
• User manual: x1
• Package Contents: Xiaomi Wi‑Fi Range Extender AX1500 x1
• Test counts listed (for security/encryption protocols and reliability): ≥220,000 times; ≥54 times; ≥180,000 times; 32 devices; ≥1,000 hours; ≥100,000 times
• Placement recommendations listed:
• Recommended to place the extender: in spacious, unobstructed areas such as on TV cabinets and coffee tables; near the centre of the house; approximately 1 metre above the ground, not on the floor; antenna should be positioned vertically, perpendicular to the ground
• Not recommended to place the extender: in obstructed areas such as storage compartments in cement walls, behind furniture such as sofas, or inside shoe cabinets and TV stands; in peripheral areas of a house, such as balconies, bathrooms, or laundry rooms
• Placement guidance note: place the extender between the signal source and the dead zone for optimal performance (positioning it only within the dead zone may not boost the signal effectively)
• SmartLink configuration note: SmartLink must be manually configured in the Xiaomi Home app for it to take effect
