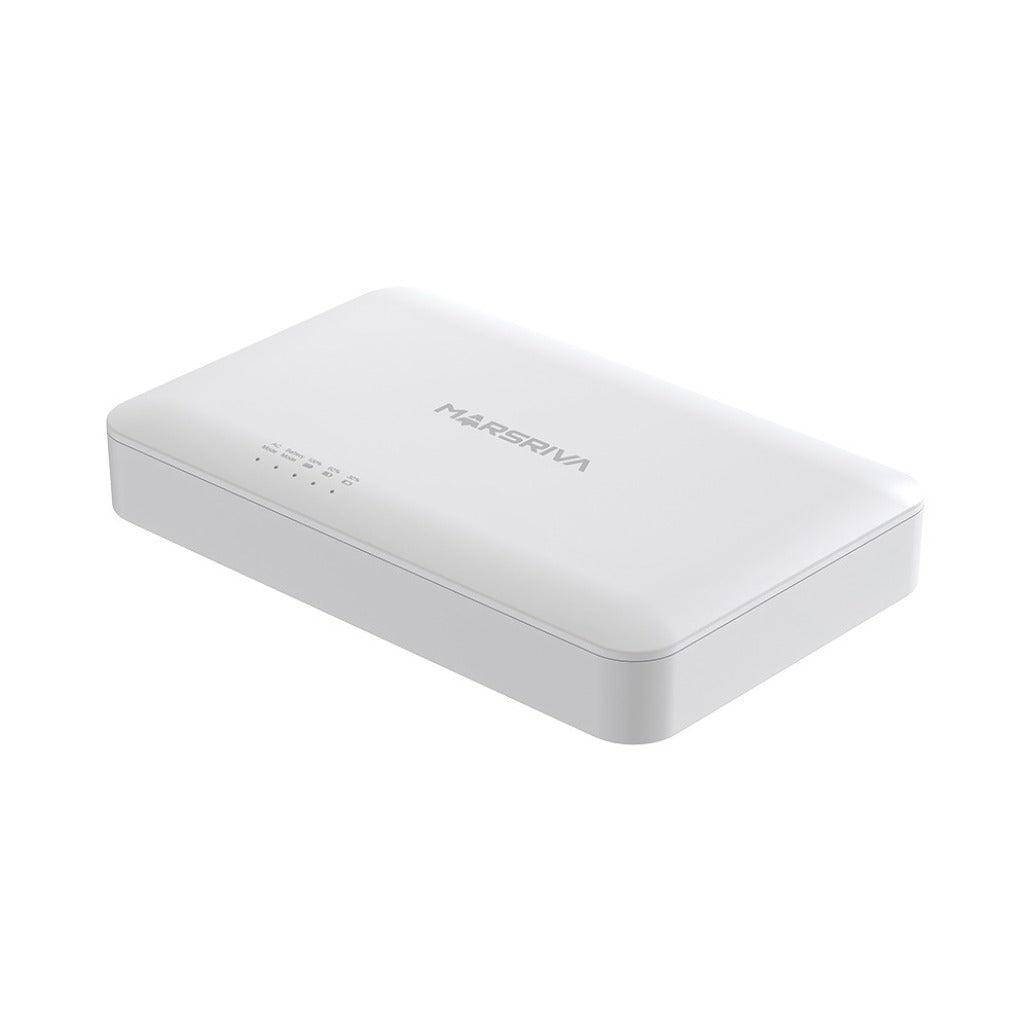

MARSRIVA Smart Mini DC UPS - KP6 Series

The MARSRIVA KP6 Series 18W Smart Mini DC UPS provides multi-device power through 1 Passive PoE port, 3 DC ports, and 1 USB port. Its 0ms AC-to-DC transfer supports non-stop device operation during power shifts. The high-capacity lithium-ion battery provides extended runtime during outages, while the 18W maximum output supports diverse devices. The ABS + PC housing is V-0 flame-retardant and includes built-in slots for quick, simple wall installation. An air-cooling system supports UPS stability through maximum heat dissipation. With its compact mini UPS design, the KP6 Series is suited to powering compatible equipment that uses its listed PoE, DC, or USB outputs. The KP6 Series accepts 100–240VAC at 50–60Hz and provides dedicated PoE, DC, and USB outputs. Its output configuration includes PoE at 24V / 0.75A, DC 1 at 12V / 1.5A, DC 2 at 9V / 2.0A, DC 3 at 5V / 2.1A, and USB at 5V / 2.1A. The series includes KP6 and KP6 Max models with 36Wh and 72Wh lithium-ion battery capacities respectively. Operating conditions are specified for UPS mode, battery mode, humidity, and storage. The unit dimension is 173mm × 108mm × 31.8mm, while net weight is listed as 397g for KP6 and 488g for KP6 Max. This MARSRIVA DC UPS combines listed power outputs, battery capacity, wall mounting, and cooling in one Smart Mini DC UPS.
Key Features
• V-0 flame-retardant housing
• Built-in slots for quick, simple wall installation
• Air-cooling system for maximum heat dissipation
• 1 Passive PoE + 3 DC + 1 USB ports
• 0ms AC-to-DC transfer
• High-capacity battery
• 18W output
Specifications
• Product type: Smart Mini DC UPS
• Series: KP6 Series
• Models: KP6; KP6 Max
• Material: ABS + PC
• Battery capacity: KP6 — 36Wh; KP6 Max — 72Wh
• Battery: Lithium-ion battery
• Battery type: KP6 — 3.6V / 10000mAh (5000mAh × 2); KP6 Max — 3.6V / 20000mAh (5000mAh × 4)
• Input: 100–240VAC / 50–60Hz
• Output PoE: 24V / 0.75A
• DC 1 output: 12V / 1.5A
• DC 2 output: 9V / 2.0A
• DC 3 output: 5V / 2.1A
• USB output: 5V / 2.1A
• Total output: 18W (Max.)
• Net weight: KP6 — 397g; KP6 Max — 488g

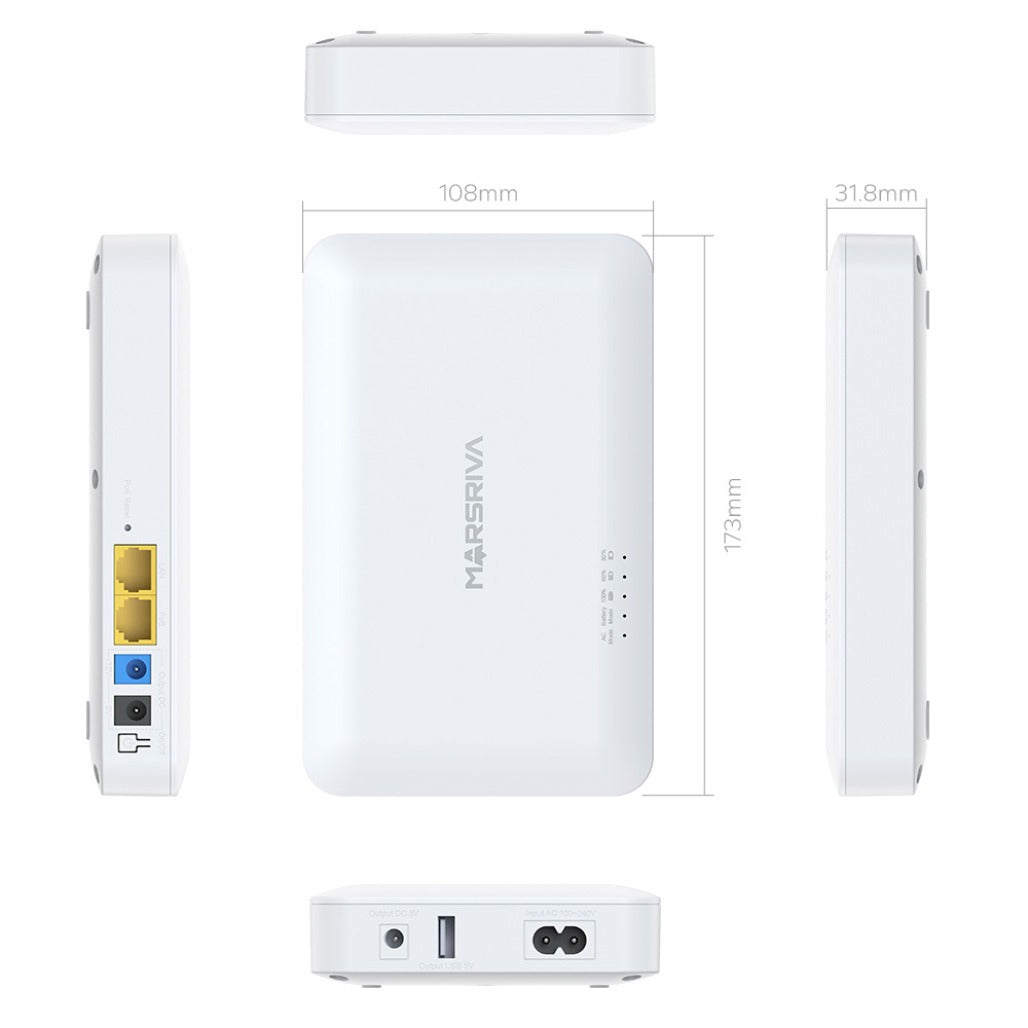

• Unit dimension: 173mm × 108mm × 31.8mm (L × W × H)
• UPS mode operating temperature: 0℃–40℃
• Battery mode operating temperature: -15℃–50℃
• Operating humidity: Less than 75%RH
• Storage temperature: 15℃–35℃
• Storage humidity: 40–75%RH
