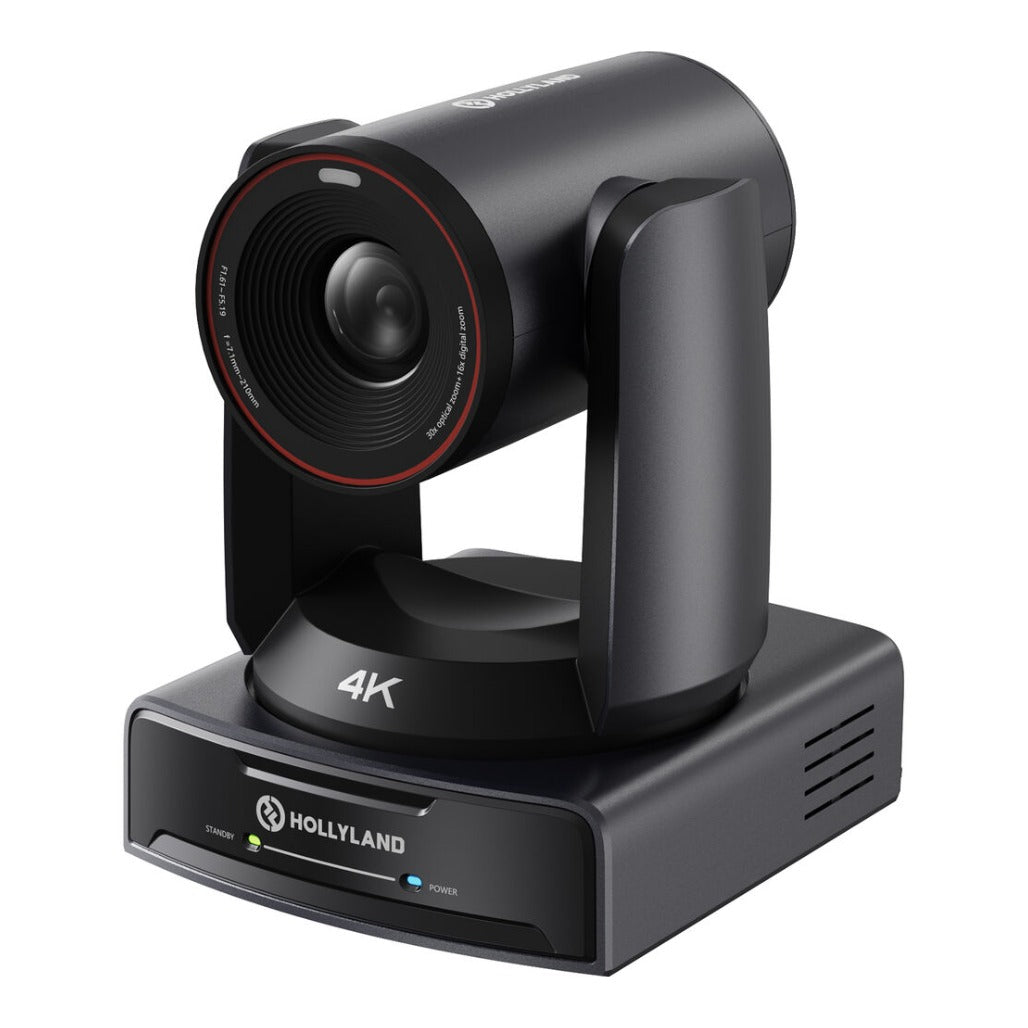

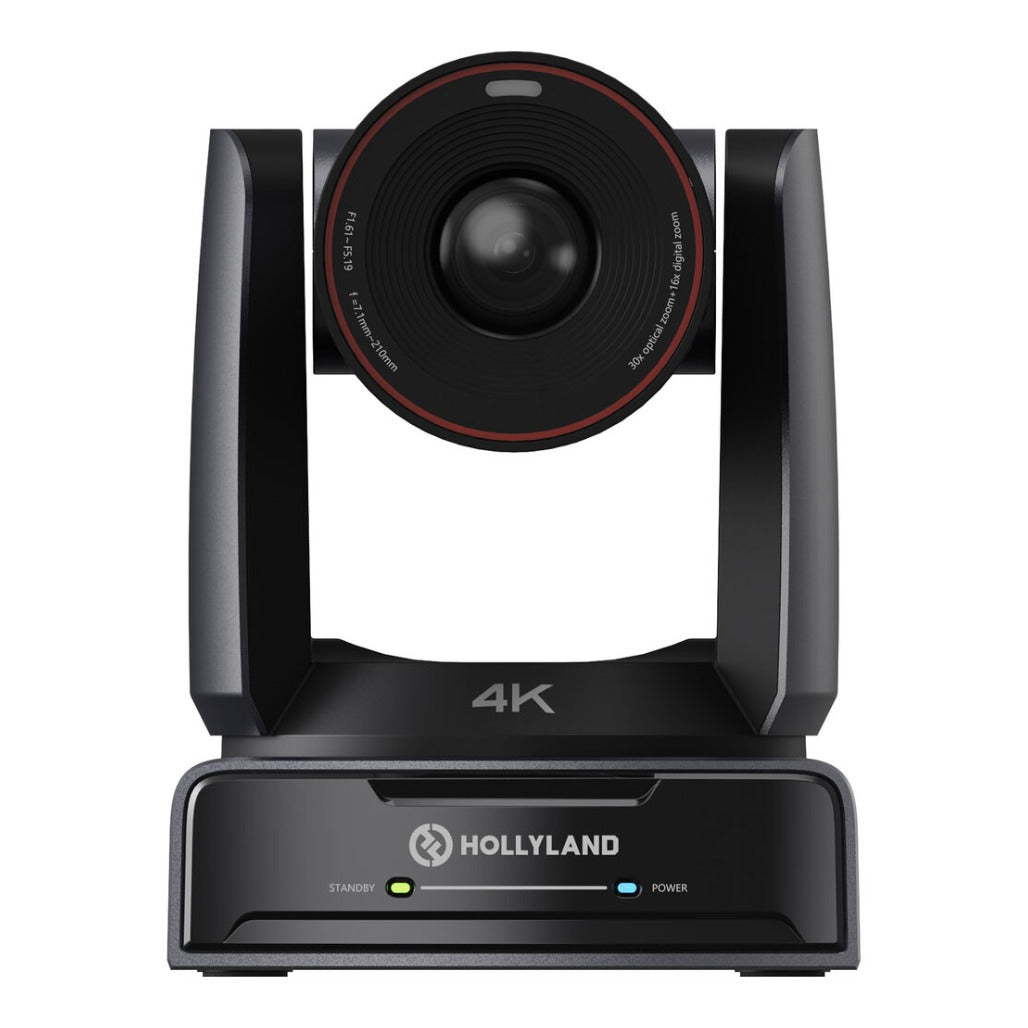

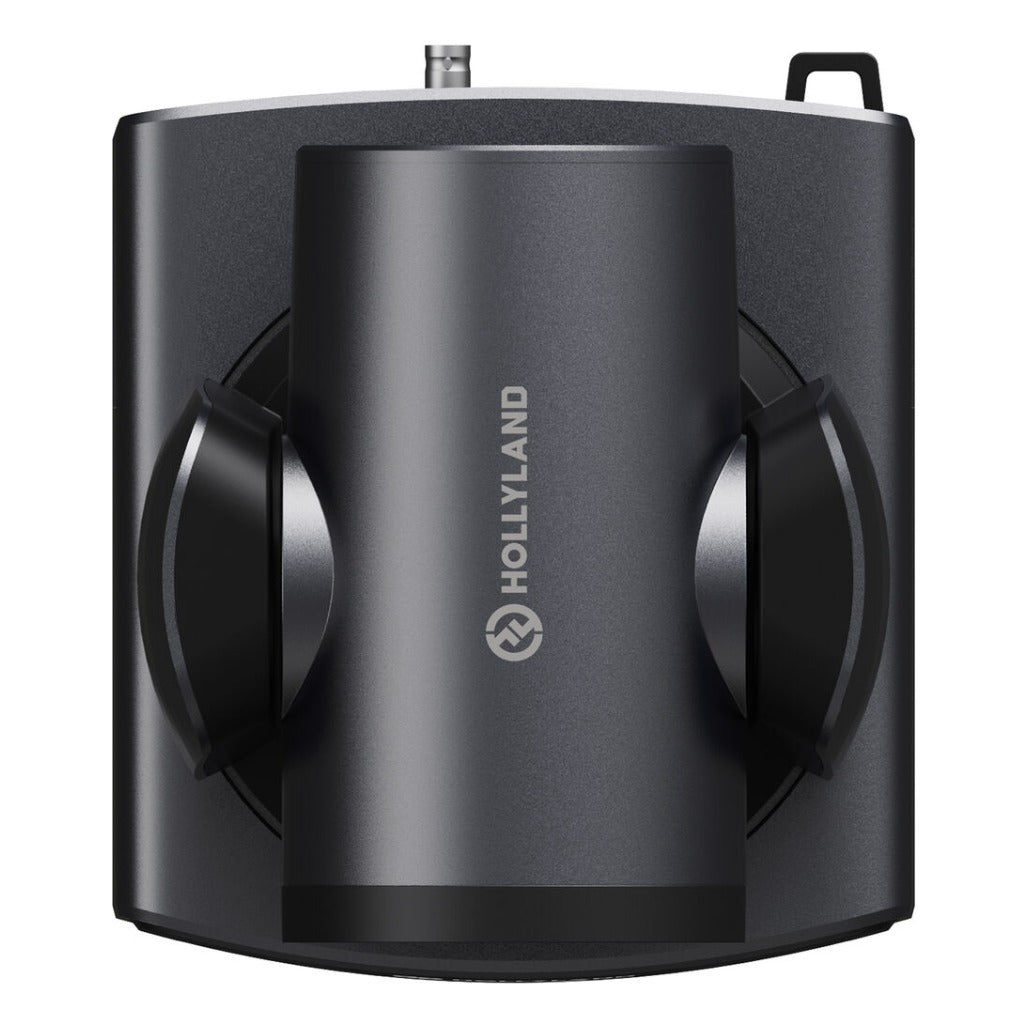

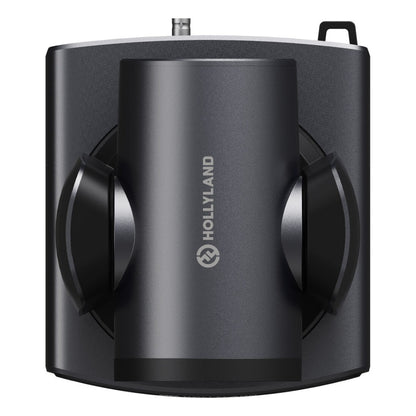

Hollyland Astra P1 UHD 4K PTZ Camera with 30x Optical Zoom

Capture crisp and vibrant 4K images during live events with the Astra P1 UHD 4K PTZ Camera from Hollyland. Equipped with a built-in 1/1.8" high-quality 8.42MP CMOS sensor and HDMI and 3G-SDI connectivity for flexible compatibility, the Astra P1 is ideal for houses of worship and other presentation halls. It offers 30x optical and 16x digital zoom, supports AI auto-tracking, intelligent face detection AE, and NDI HX3, and boasts capture resolutions up to UHD 4K at 60 fps. You can store up to 255 positions with an accuracy of 0.1°. Key Specs Image Sensor 1/1.8"-Type Effective Sensor Resolution 8.42 Megapixel Shutter Speed 1/10000 to 1/30 Second Max Optical Zoom 30x Max Digital Zoom 16x Max Video Output via HDMI Up to UHD 4K at 25/29.97/30.00/50/59.94/60.00 fps via SDI/BNC Up to 1080p at 25/29.97/30.00/50/59.94/60.00 fps Show More Max Recording Modes No Broadcast Output NTSC/PAL Supported Protocols Video Streaming DHCP/HTTP/NDI|HX3/RTMP/RTMPS/RTSP/SRT/TCP IP Streaming 320 x 240 to 3840 x 2160 Wireless No PoE Support Yes: PoE+ 802.3at Mounting 1x Proprietary for Ceiling 1x Proprietary for Wall Imaging Image Sensor 1/1.8"-Type CMOS Sensor Resolution 8.42 Megapixel IR Cut Filter No Exposure Control Shutter Speed 1/10000 to 1/30 Second Precise Scan Rate Control No Signal-to-Noise Ratio 55 dB Minimum Illumination 0.5 Lux at f/1.8 Aperture Flip / Mirror Support Image Flip, Mirror (Vertical) Lens Focal Length 7.1 to 210mm Max Optical Zoom 30x Max Digital Zoom 16x Field of View Horizontal: 59.2 to 2.5° Vertical: 34.6 to 1.4° Maximum Aperture f/1.61 to 5.19 Video Capture Video Output via HDMI 3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 59.94/60.00 fps via SDI/BNC 1920 x 1080 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 59.94/60.00 fps Embedded Audio HDMI/SDI Internal Recording No Broadcast Output NTSC/PAL Supported Protocols Video Streaming DHCP/HTTP/NDI|HX3/RTMP/RTMPS/RTSP/SRT/TCP IP Streaming 320 x 240 to 3840 x 2160 Control Presets 255 Pan/Tilt Pan: 170° Tilt: 120° (30 to 90°) Networking Wireless No Interface Video I/O 1x HDMI 2.0 Output 1x BNC (3G-SDI) Output Audio I/O 1x 1/8" / 3.5 mm TRS Stereo Line Input 1x 1/8" / 3.5 mm TRS Stereo Line Output Other I/O 1x Block 2-Pin (RS-485) 1x Mini-DIN 8-Pin (RS-232) 1x RJ45 (Ethernet) 1x USB-A (USB 2.0) 1x USB-B (USB 3.0) Built-In Microphone No Built-In Speaker No Power PoE Support Yes: PoE+ 802.3at Power I/O 1x Barrel (12VDC at 2 A) Power Consumption 18 W Environmental Operating Conditions 32 to 104°F / 0 to 40°C Storage Conditions 4 to 140°F / -20 to 60°C Impact Resistance No Environmental Resistance No General Mounting 1x Proprietary for Ceiling 1x Proprietary for Wall Dimensions (W x H x D) 7.4 x 8.9 x 6.7" / 188 x 226 x 169 mm Weight 5 lb / 2.3 kg (Body Only) Packaging Info Package Weight 10.6 lb Box Dimensions (LxWxH) 11.3 x 11.3 x 9.5"
Key Features
• Effective Sensor Resolution
• Up to 1080p at 25/29.97/30.00/50/59.94/60.00 fps
• DHCP/HTTP/NDI|HX3/RTMP/RTMPS/RTSP/SRT/TCP
• 320 x 240 to 3840 x 2160
• 1x Proprietary for Ceiling
• Precise Scan Rate Control
• 0.5 Lux at f/1.8 Aperture
• Image Flip, Mirror (Vertical)
• 3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps
• 1920 x 1080p at 29.97/30.00/50/59.94/60.00 fps
Specifications
• Capture crisp and vibrant 4K images during live events with the Astra P1 UHD 4K PTZ Camera from Hollyland. Equipped with a built-in 1/1.8" high-quality 8.42MP CMOS sensor and HDMI and 3G-SDI connectivity for flexible compatibility, the Astra P1 is ideal for houses of worship and other presentation halls. It offers 30x optical and 16x digital zoom, supports AI auto-tracking, intelligent face detection AE, and NDI HX3, and boasts capture resolutions up to UHD 4K at 60 fps. You can store up to 255 positions with an accuracy of 0.1°.
• Max Video Output
• Up to UHD 4K at 25/29.97/30.00/50/59.94/60.00 fps
• Broadcast Output
• Wireless
• Yes: PoE+ 802.3at
• Focal Length
• 7.1 to 210mm
• Horizontal: 59.2 to 2.5°
• Vertical: 34.6 to 1.4°
• Video Output
• Pan: 170°
• Tilt: 120° (30 to 90°)

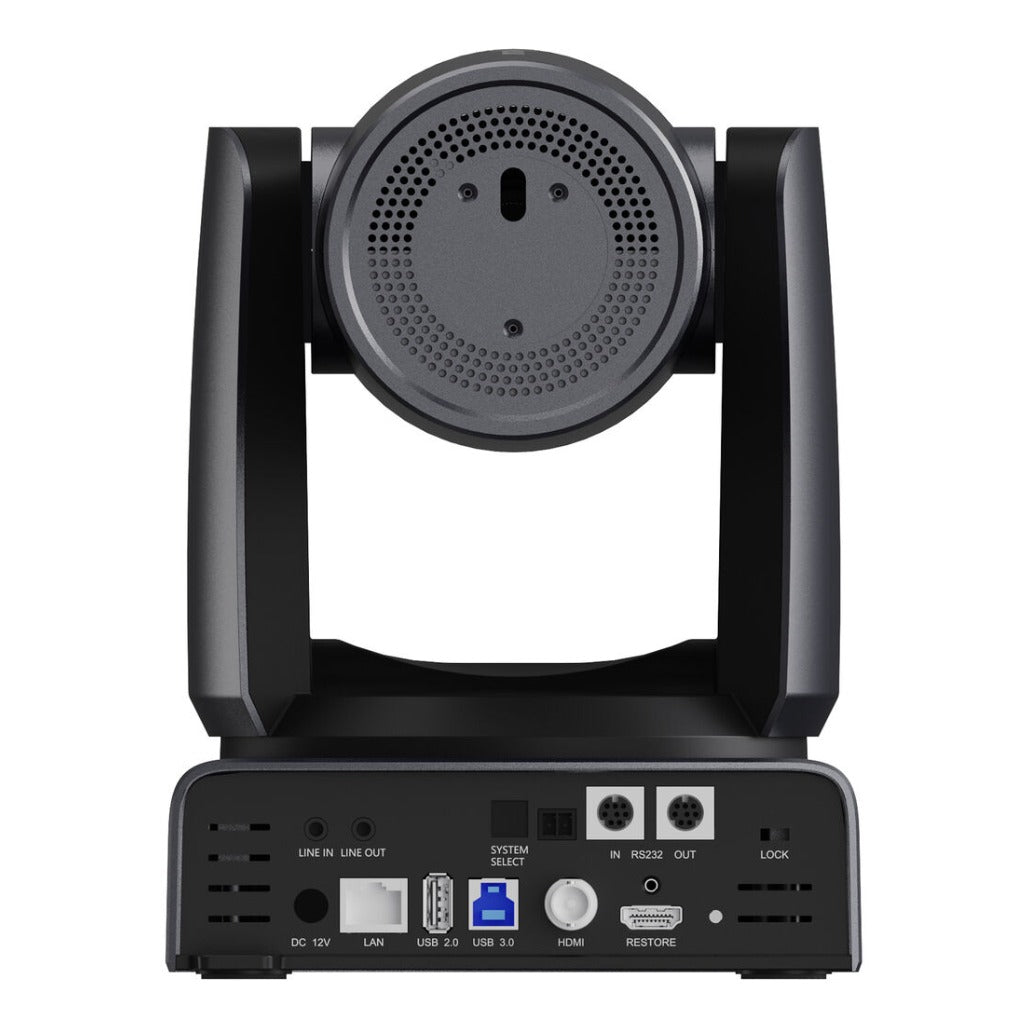

• 1x HDMI 2.0 Output
• 1x BNC (3G-SDI) Output
• 1x 1/8" / 3.5 mm TRS Stereo Line Input
• 1x 1/8" / 3.5 mm TRS Stereo Line Output
• Power
• Power I/O
• Power Consumption
• 18 W
• Dimensions (W x H x D)
• 7.4 x 8.9 x 6.7" / 188 x 226 x 169 mm
• Weight
• 5 lb / 2.3 kg (Body Only)
• Package Weight
• 10.6 lb
• Box Dimensions (LxWxH)
• Brand: Hollyland
